• Boost function
  • Patented wing-like surround suction plate
Setting a new standard with ring suction that breaks away from tradition
Product Details
Wing-liked surround suction technology FOTILE W implements the innovative innovative “smart wing-like surround suction plate” that offers super strong 3D suction and extraction effect by wider fume control range and accelerated fume inlet, achieving no escape of fumes.
Instant smoking function Smart smoking Increase extraction power to 1170m³/h in boost fuction, leading grease and smoke out of the kitchen smoothly.
Rounded Edge Humanized design gives you a better product experience.
Easy Cleaning Simply unclasp the 4 buckles to remove suction plate before cleaning. The coated material makes cleaning a breeze.
Technical Parameters
  • Certification: SAA
  • Product Size (mm)(W×D×H): 895x513x(517-940)
  • Voltage: 220-240V 50Hz
  • Noise Level (dB): 56
  • Illumination Power (W*1): 2(LED)
  • Air Flow (m³/h)(IEC 61591): 1170
  • Motor Power (W): 270
  • Filter: slanted guide flow design oil filter
  • Gas Sensor: N
  • Heat Sensor: N
  • Wind Curtain: N
  • Auto Turbo System: Y
  • Intelligent Air Management: N
  • Smoke Sound Detection: N
  • Anion Sterilization: N
  • Central Energy Cursor: N
  • Net Weight (kg): 23.5
  • Gross Weight (kg): 30.5
  • Packing-Box Size (mm): 1005x625x605
  • Volume (m³): 0.38
IEC:International Standard for Air Volume Testing

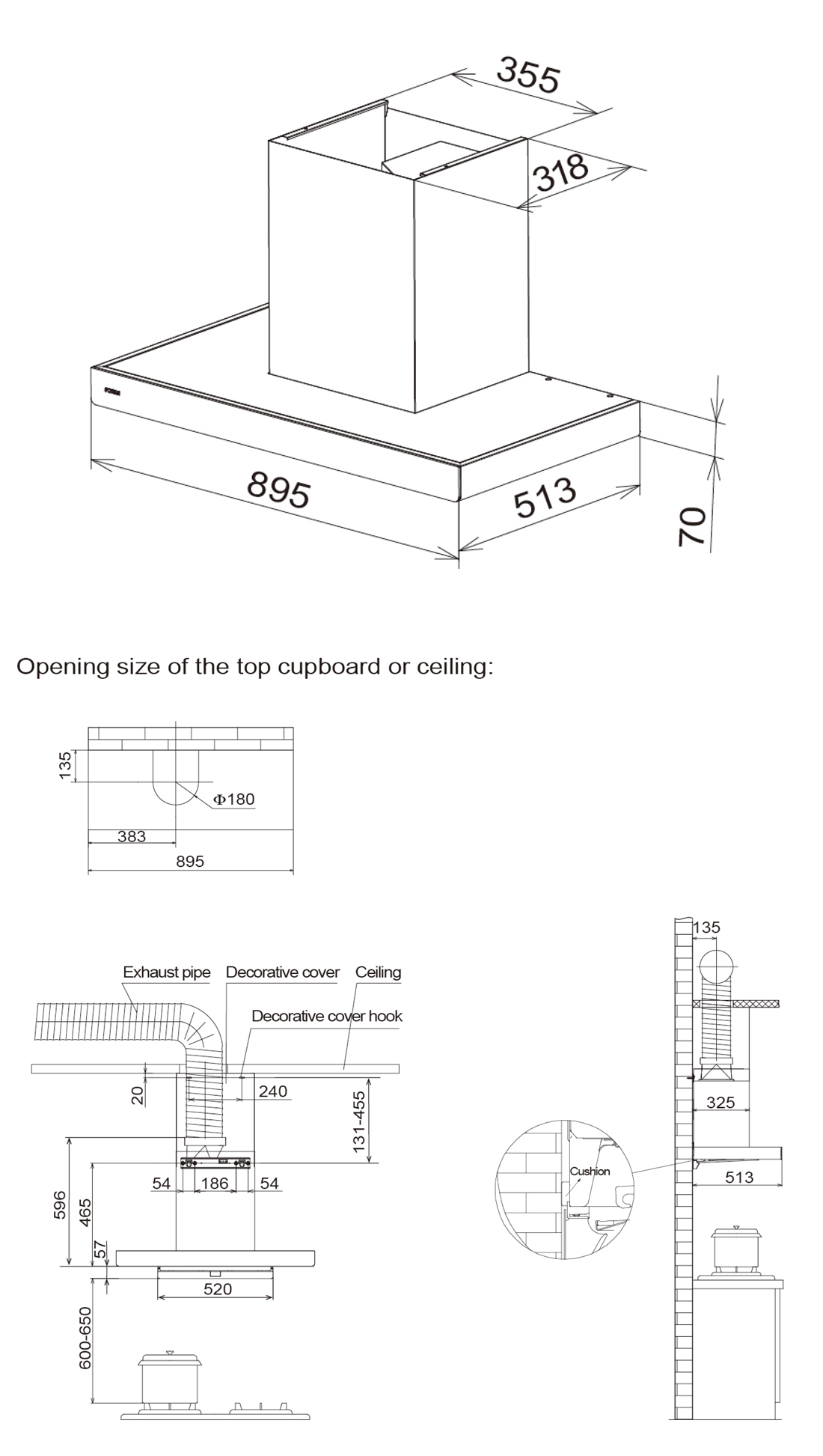

Installation Diagram
Wind tunnel installation ceiling installation diagram (unit: mm)
